VGN4

VGN4

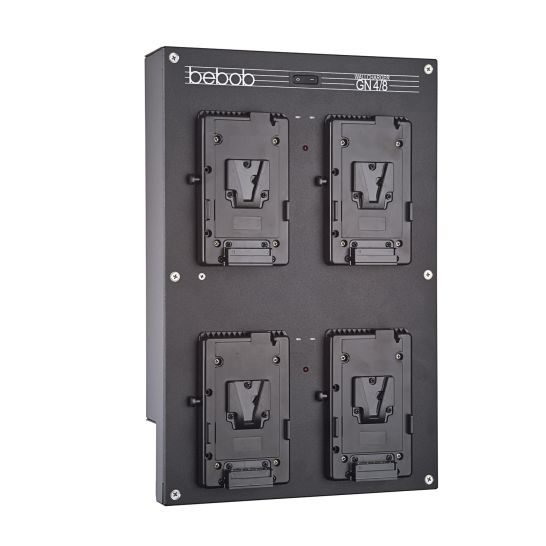

4-Channel V-Mount Wall-Mount Simultaneous 16,8V Li-Ion Charger

- 200W Power – with Fast Charge Option via 2 Channels (2x5A max.)
- Cascade Option with other bebob Wall-Mount Chargers via AC Loop-Through Connection
- Carrying Handle for flexible Use also On-Set
- Dimensions (WxHxD) 270 x 89,7 x 410mm (max)
- Weight: ca. 3,8kg
- 2 years warranty

€1,090.00

Downloads

PDF Documents

9062_VGN4 DRILLING PATTERN GN4-8.PDF (30.98 KB)
9062_VGN4_User Manual Wallmount Charger GN4-8.pdf (1036.3 KB)

Image files

9062_VGN4.tif (2687.07 KB)
9062_VGN4-2.tif (2562.82 KB)
9062_VGN4-3.tif (2524.46 KB)
9062_VGN4-Anschlüsse.tif (35872.59 KB)
9062_Wallcharger-Family.tif (152772.66 KB)

Specifications

Model	VGN4 - Wall-Mount Simultaneous Li-Ion Charger
Mount	V-Mount
Channel	4 simultaneous
Charge Specification	16,8V / max 10,0A // 165W
	2x5,0A max - fast charge option ch1/3
	8x1,25A standard - charge all channels
AC Input	90-264V / 47-63Hz // 200W
Operating Temp. Range	-10°C +35°C
Weight	3,8kg
Dimensions (W x H x D)	270 x 89,7 x 410mm (max)
Warranty	2 Years
Batteries	bebob, Idx®, Sony®
